DESCRIPTION

Basic Info.

Model NO.	MX-3DC12V/I-20
Max.Capacity	100-200 L/min
Driving Type	Motor
Material	Stainless Steel
Structure	Single-stage Pump
Assembly	Liquid Pumps
Power	Solar Energy
Start Up	DC Pump
Type	Submersible Pump
Application	Submersible Pump
Industry	Agriculture
Media	Clean Water
Performance	No Leakage Pump
Theory	Centrifugal Pump
Certificate	CE GS RoHS PAHs
Transport Package	Carton
Specification	7kg
Trademark	MAXIS
Origin	China
HS Code	8413709990
Production Capacity	500000PCS/Year

Packaging & Delivery

Package Size 15.00cm * 15.00cm * 50.00cm Package Gross Weight 8.000kg

Product Description

Application

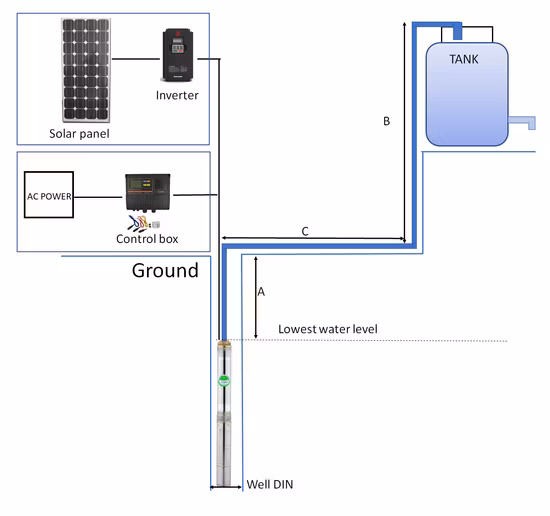

1.For water supply from wells or reservoris in irrigation of agriculture.2.For domestic use, widely used for drinking water and living water.3.For garden use and irrigation

Product Advantage
1. Solar pump with high efficiency permanent magnetic motor efficiency improved 15%-30%2. Environmental protection, clean energy, can be powered by both solar panel, battery as well as AC electric.3. Over-load protection, under-load protection, lock-rotor portection, thermal protection4. Much longer life than the nomal AC water pump.
Pump
Stainless steel pump body
Motor with cooper winding
Built-in thermal protector for single phase motor
Max.liquid temperature: +40ºC
Techenical Data

Nr	Model	Voltage	Current	Power	Outlet	Max Flow	Max Head	Cable
278	MX-3DC12V/S-40	12V	16A	250W	25 MM	1500 L/H	40 M	20
279	MX-3DC24V/S-40	24V	8A	250W	25 MM	1500 L/H	40 M	20
280	MX-3DC12V/I-20	12V	16A	250W	25 MM	1500 L/H	20 M	20
281	MX-3DC24V/I-20	24V	8A	250W	25 MM	1500 L/H	20 M	20
